Product Description:

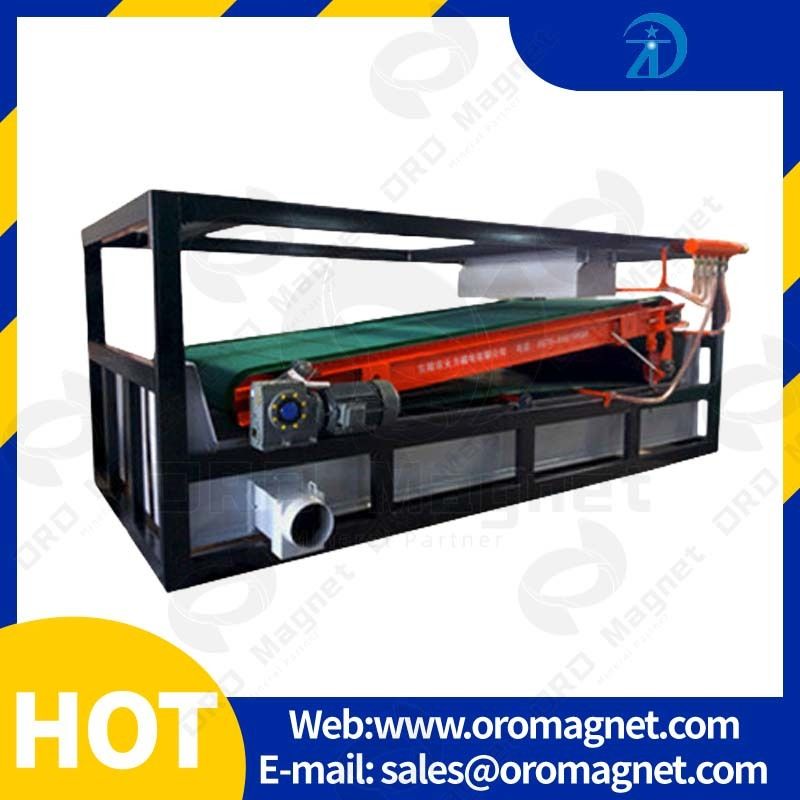

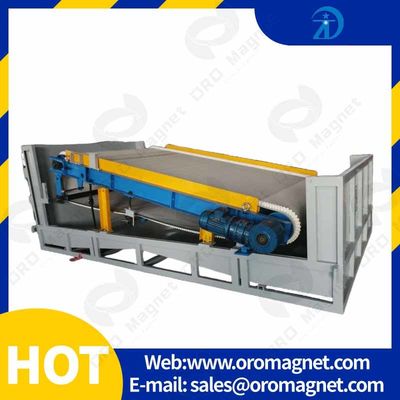

We developed an advanced series of high gradient and high intensity magnetic separators. This series features a permanent high strength magnetic flat type separator that is mainly used for the separation of 1.2 mm fine non-metallic minerals, such as nepheline, quartz and feldspar. In addition to these minerals, it can also be used to remove iron impurities while purifying red iron ore (hematite, limonite, garnet and siderite, etc.), manganese ore, ilmenite, and kaolin.
Specification:
| Model |
Magnetic Separation Area Size |
Processing Capacity |
Feed Concentration |
Highest Magnetic Field Strength |
Granularity |
Power |
| ZT-0815P |
800*1500mm |
5-8t/h |
20%-25% |
9000-14000gs |
<2mm |
1.1kw |
| ZT-1020P |
1000*2000mm |
7-10t/h |
20%-25% |
9000-14000gs |
<2mm |
1.5kw |
| ZT-1525P |
1500*2500mm |
10-15t/h |
20%-25% |
9000-14000gs |
<2mm |
2.2kw |
| ZT-1530P |
1500*3000mm |
12-18t/h |
20%-25% |
9000-14000gs |
<2mm |
3.0kw |
| ZT-2025P |
2000*2500mm |
16-20t/h |
20%-25% |
9000-14000gs |
<2mm |
4.0kw |
| ZT-2030P |
2000*3000mm |
18-22t/h |
20%-25% |
9000-14000gs |
<2mm |
5.5kw |
Applications:
The Superconducting High-Gradient Magnetic Separation Technology is mostly used for the extraction and purification of 1.2mm fine non-metallic minerals, such as nepheline, quartz, and feldspar.
It is also useful for removing impure iron elements from some mineral ores, including red iron ore (hematite, limonite, garnet and siderite, etc.), manganese ore, ilmenite, and kaolin.
Customization:
High Gradient Magnetic Separator
Brand Name: ZT
Model Number: ZT-1525P
Place of Origin: Foshan, Guangdong, China
Certification: ISO9001
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Exporting Package
Delivery Time: Within 35 days after downpayment
Payment Terms: L/C,T/T
Supply Ability: 50 sets per month
Maintenance: Easy
Magnetic Field Distribution: Uniform
Working Environment: Wet
Magnetic Field Intensity: High
Magnetic Field Direction: Vertical
Highlighted Keywords: Wet Plate Magnetic Separator, Permanent Plate Magnet Machine, Iron Plate Magnetic Separator
Support and Services:
High Gradient Magnetic Separator technical support and services include:
- On-site installation, commissioning, and training
- Telephone and email technical support
- Remote maintenance service
- Regular equipment inspection and maintenance
- Spare parts and consumables supply
- Equipment upgrade and optimization
Packing and Shipping:
Packaging and Shipping of High Gradient Magnetic Separator
The High Gradient Magnetic Separator is carefully packaged for shipment. The packaging materials used include foam, paper, wooden box, corrugated cardboard, bubble wrap, etc. The package should be strong enough to protect the product during transport.
The shipping method of High Gradient Magnetic Separator is air or sea. The shipping time and cost will depend on the shipping destination. The customer will be informed of the estimated shipping time and cost before the product is shipped.
FAQ:
- Q: What is High Gradient Magnetic Separator?
- A: High Gradient Magnetic Separator is a kind of magnetic separation equipment used to remove weakly magnetic minerals from non-magnetic materials.
- Q: What is the brand name of this product?
- A: The brand name of this product is ZT.
- Q: What is the model number of this product?
- A: The model number of this product is ZT-2025P.
- Q: Where is this product made?
- A: This product is made in Foshan, Guangdong, China.
- Q: Does this product have ISO9001 certification?
- A: Yes, this product has ISO9001 certification.
